3.0 Inch V-Band Flange for MK7 Golf GTI 2.0T Down-pipe. Made from stainless steel. Compatible with the stock turbocharger outlet flange, stock V-band clamp, and stock fire ring.

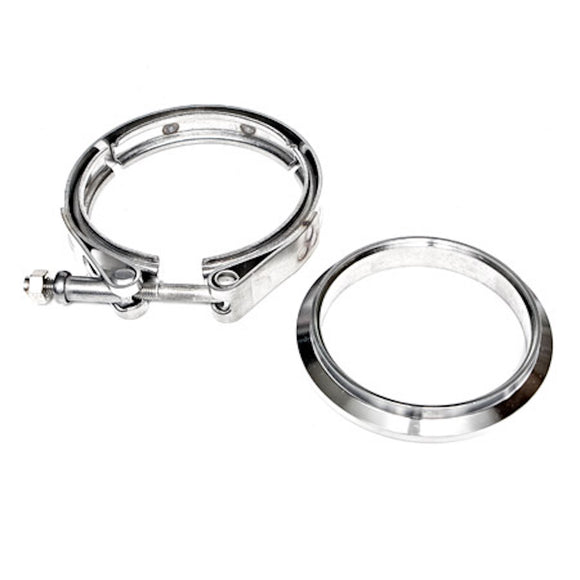

(2) 3" V-Band Flanges (STAINLESS STEEL) (3.75 OD Flanges / Grooved for 3" Tube)
(1) Heavy Duty V-Band Clamp (stainless)
PRODUCT DESCRIPTION: 3 inch V-band gasket for industry standard 3 inch V-band flange. Use a 3 inch V-band gasket to improve the seal between two 3 inch v-band flanges. Compatible with industry standard 3 inch V-band flange (3 inch inner diameter and 3.75 inch outer diameter). APPLICATION NOTES: V-band flanges...

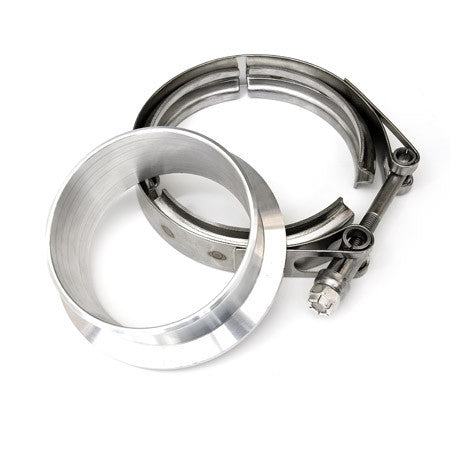

3" V-Band flange to 4" pipe transition adapter. One piece compact design and machined from 304 Stainless Steel. Use this part to bolt to a mating 3" v-band (3.75" outer ring diameter) and the other end tapers outward to weld direct to a 4" tube after a very brief transition....
Low profile oil inlet (oil feed) -3AN LINE Kit for GT25R through GT35R (or GTX28 through GTX35) series turbochargers. 32" line length with integrated banjo. Includes standard banjo bolt with 0.18" diameter hole. Alternate restricted banjo bolt with 0.035" diameter hole (additional +$10.00). PRODUCT CONTENTS: * (1 unit) Steel braided...

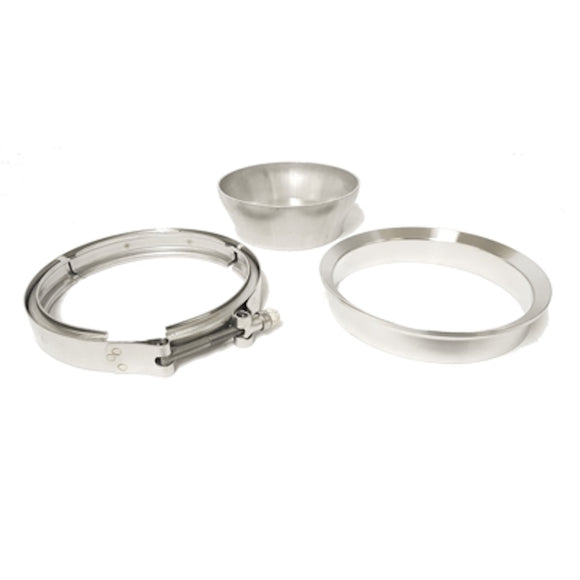

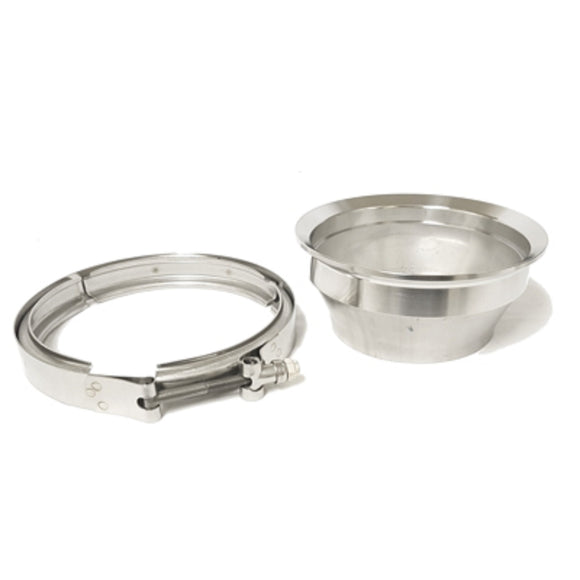

4" downpipe marmon flange/clamp/transition set for large frame GT42 and GT45 T6 divided turbine housings. Heavy duty stainless steel v-band clamp. Fits beveled 5.75" OD exit flange on divided T6 (not T4) turbine housings. Fits turbo models GT42 and GT45 models that have the larger footprint T6 divided housing only!...

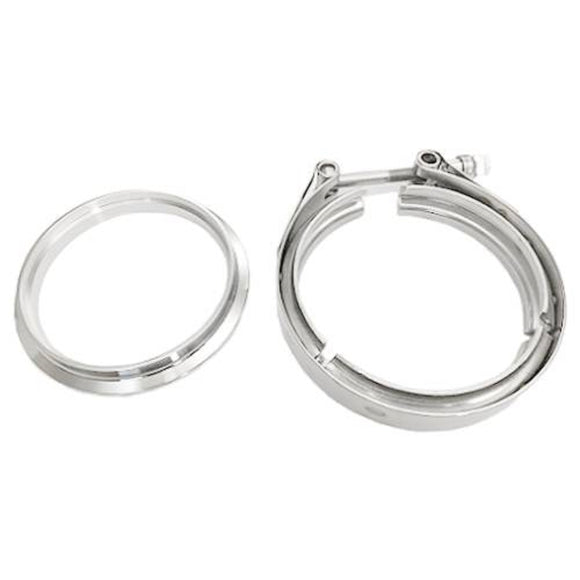

4" V-band Stainless DOWNPIPE SIDE Flange and Clamp SET for T4 Turbine Housing on GT42/GTX42 GT45/GTX45

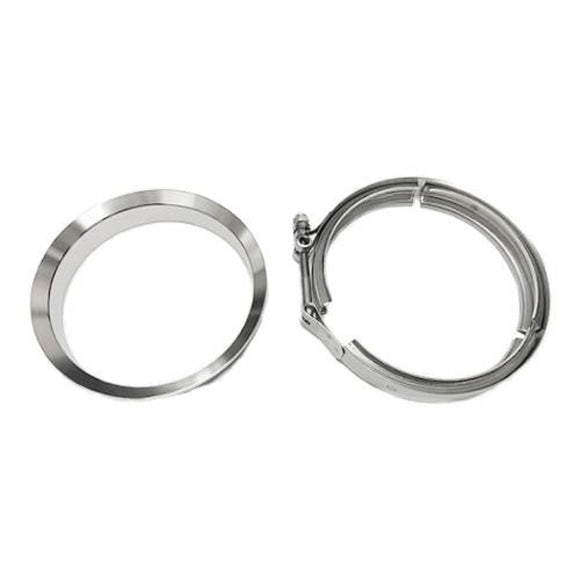

5" MARMON Stainless Downpipe Flange & Clamp GARRETT T6 DIV on GT42 GT45For the Divided T6 Turbine housing with the beveled downpipe flange and NOT the T4 turbine housing with the flat flange. Flange has a 5” ID on the back end so you can butt a 5” OD tube into...

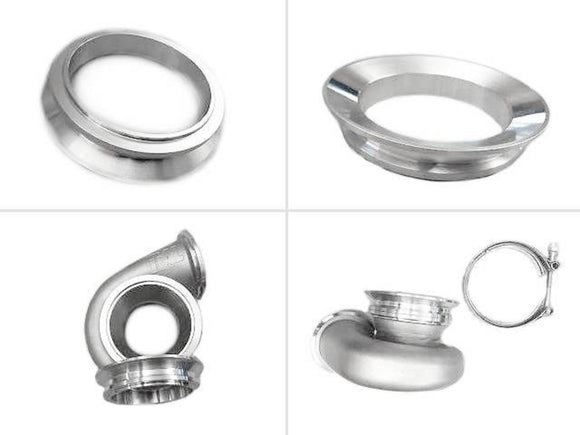

5" V-band Stainless DOWNPIPE SIDE Flange and Clamp SET for T6 Turbine Housing GT47/GTX47 GTX50 GTX55
Compatible GARRETT PART NUMBERS:
761208-0009: 0.96 A/R
761208-0010: 1.08 A/R
761208-0011: 1.23 A/R
761208-0012: 1.39 A/R
8mm (1.25pitch) Nut, Locking Head Common 8mm exhaust Nut with 1.25 thread pitch and locking. 12mm wrench head (nice and compact)

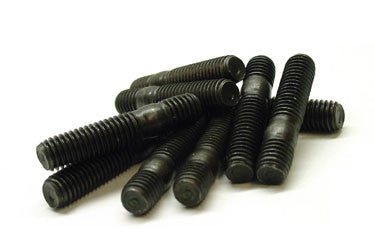

8mm (1.25pitch) Stud, .5 x 1.25 x 2.00 Common 8mm exhaust stud with 1.25 thread pitch. .5 before .25 shank, and 1.25 thread.
PRODUCT DESCRIPTION: Tial or Garrett 91mm OD V-Band flange (w/78mm centering ring) to 4" pipe transition adapter. One piece compact design and machined from 304 Stainless Steel. Use this part to mate to the 91mm OD version of the 3" v-band found on the downpipe side of the Tial Turbine...

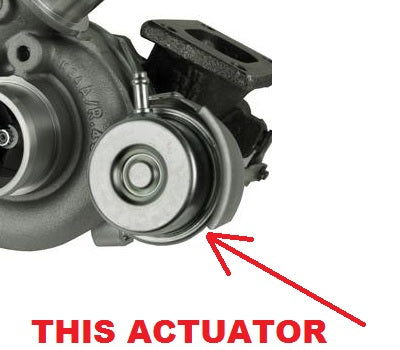

Garrett ACTUATOR ASSEMBLY CUSTOM BUILT FOR GT1548, 6 PSI

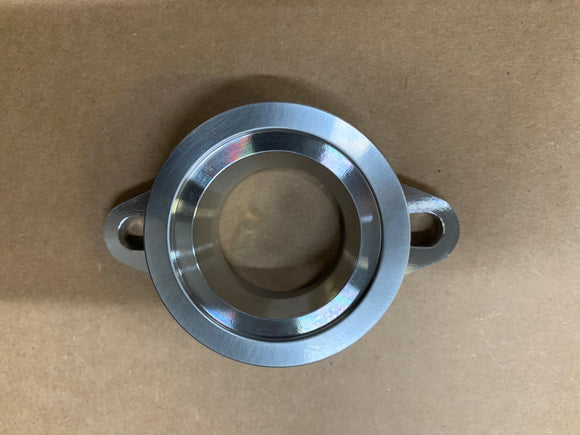

(1) Adapter, for installing Tial 44mm (V44) Wastegate onto a manifold flanged (or other location flanged) for 35mm, 38mm, delta-gate, evolution, smartgate, or other 2 bolt wastegates. Low profile. Use with 2X 8mm x 25mm high strength hex bolts. Fully compatible with original Tial supplied wastegate v-band clamp. 3D CNC...

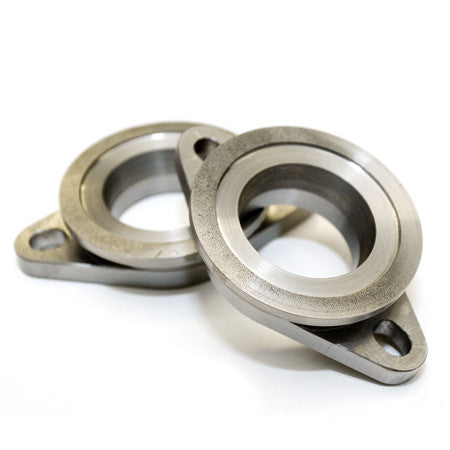

Adapter, for installing V-banded V38mm (MVS) Wastegate into location flanged for 2 bolt, F38mm wastegate. Use with 2X 8mm x 25mm high strength hex bolts and the metal 2 bolt gasket between thsi part and your flange on manifold. 3D CNC Machined

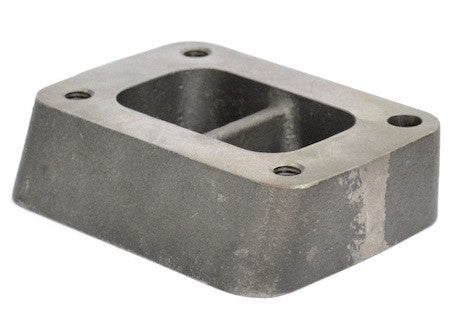

Garrett made, Cummins 6.7L turbine inlet adapter. PRODUCT SPECIFICATIONS:
High flow and smooth transition ports
1.3" overall height
Both sides tapped for 10mm x 1.5 studs (3 of 4 holes); and one untapped hole
GARRETT PART NUMBER:
Add on options for Garret turbo & manifold for Audi / VW 2.0T FSI / TSI Models Add-on Option 1: Add all required oil and coolant lines and fitting Add-on Option 2: Add stock diameter compressor inlet elbow Add-on Option 3: Add high flow comp outlet pipe (not for Audi...

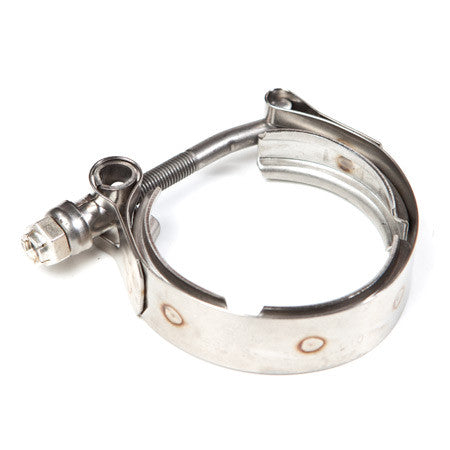

Alternate clamp for Tial MVS inlet. Heavy duty stainless steel V-Band clamp. 1-piece band style to use as an alternative over the 2-half buckle style.
Alternate clamp for Tial V44 inlet & Outlet. Heavy duty stainless steel V-band clamp. 1-piece band style to use as an alternative over the 2-half buckle style.
PRODUCT DESCRIPTION: Billet aluminum oil drain flange (oil return flange) for Garrett GT ball bearing series, Garrett GTX ball bearing series (specific model compatibility below) and T25 / T28 Non-ball bearing turbochargers. COMPATIABLE GARRETT GT AND GTX TURBOCHARGERS: - GT2554R aka GT25R - GT2560R aka GT28R - GT2860RS - GT2871R...
