V-Band Adapter 3" (Cast Stainless) for Garrett T25 5 Bolt Turbine Housing GT25, GT28/GTX28, GTX29, GT30/GTX30

  • $95.00 USD
    Unit price per

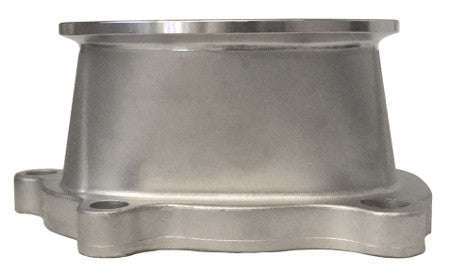

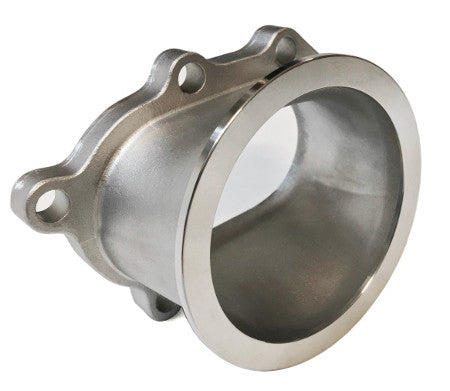

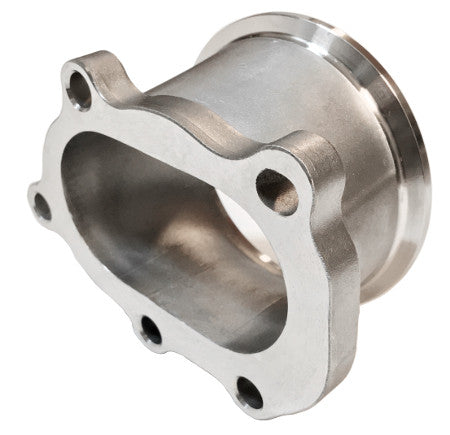

Cast stainless steel 3" V-band adapter for Garrett Turbine Housings with T25 Inlet and GT 5 Bolt OutletOffers a smooth and high flowing transition from the 5 bolt outlet to a 3" V-Band! Compatible with Garrett turbine housing PN: 430609-xxxx and Nissan SR20DET.

Important note:

** NOT Compatible with Garrett T3 inlet, internally gated, and 5 bolt outlet turbine housings, NOT compatible with T3 5 Bolt Ford style, NOT for T3 5 bolt GT Internal WG housing PN: 771300-00XX, NOT for Nissan Skyline R32-R34


PRODUCT SPECIFICATIONS:
* Cast 304 Stainless Steel
* Overall height 2.5"
* V-band flange 3" inner diameter and 3.75" outer diameter
* V-band flange height 0.25"

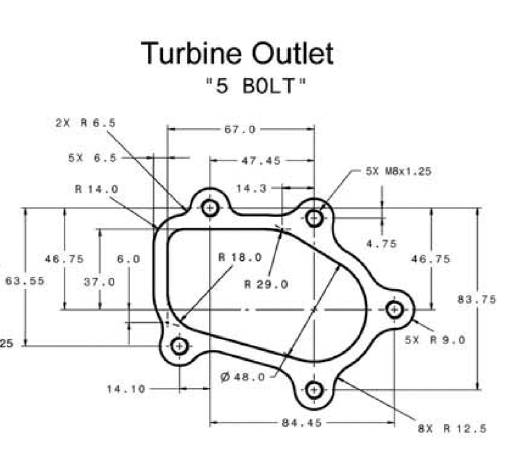

* 5 bolt GT flange height 0.5"
