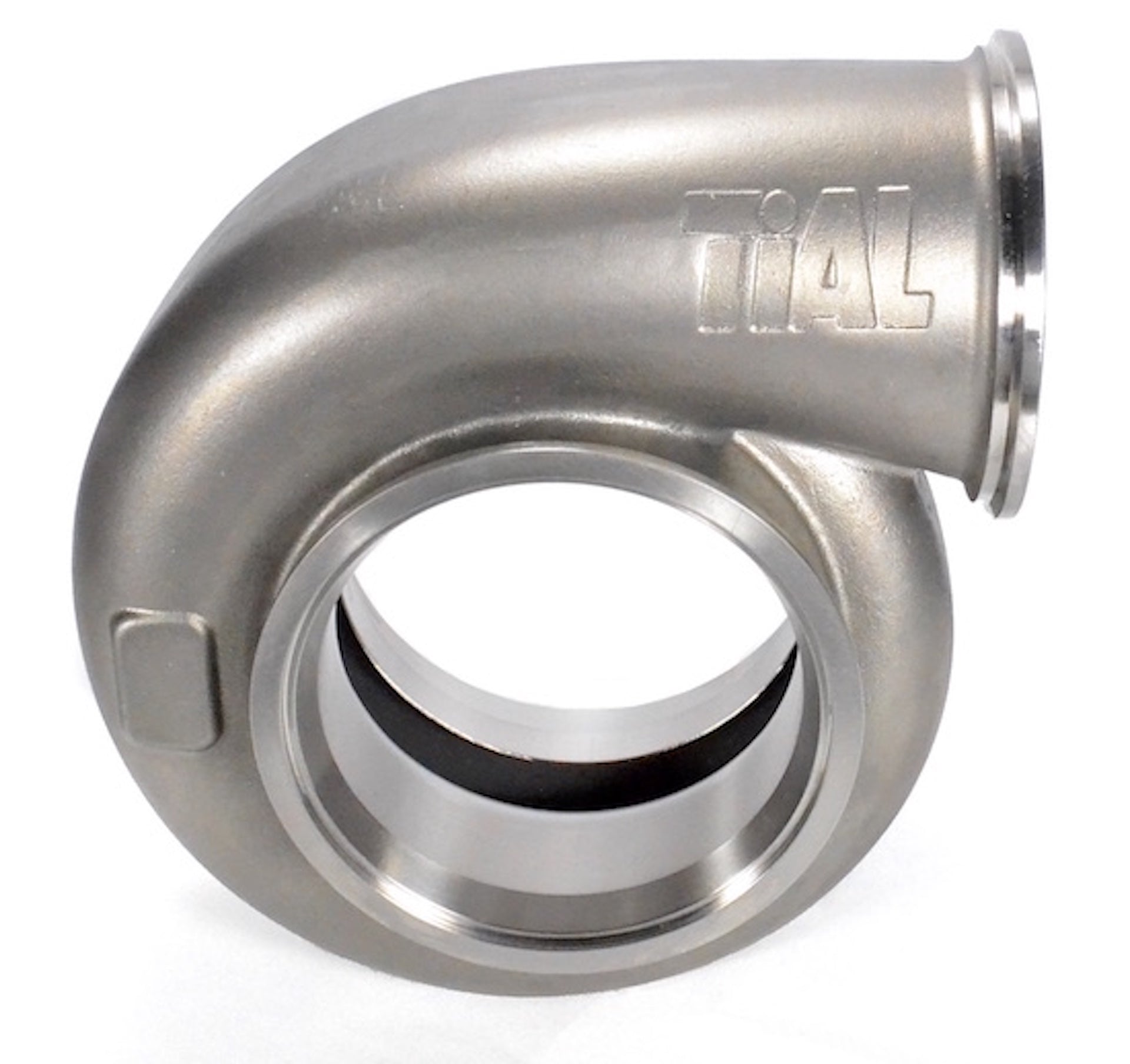

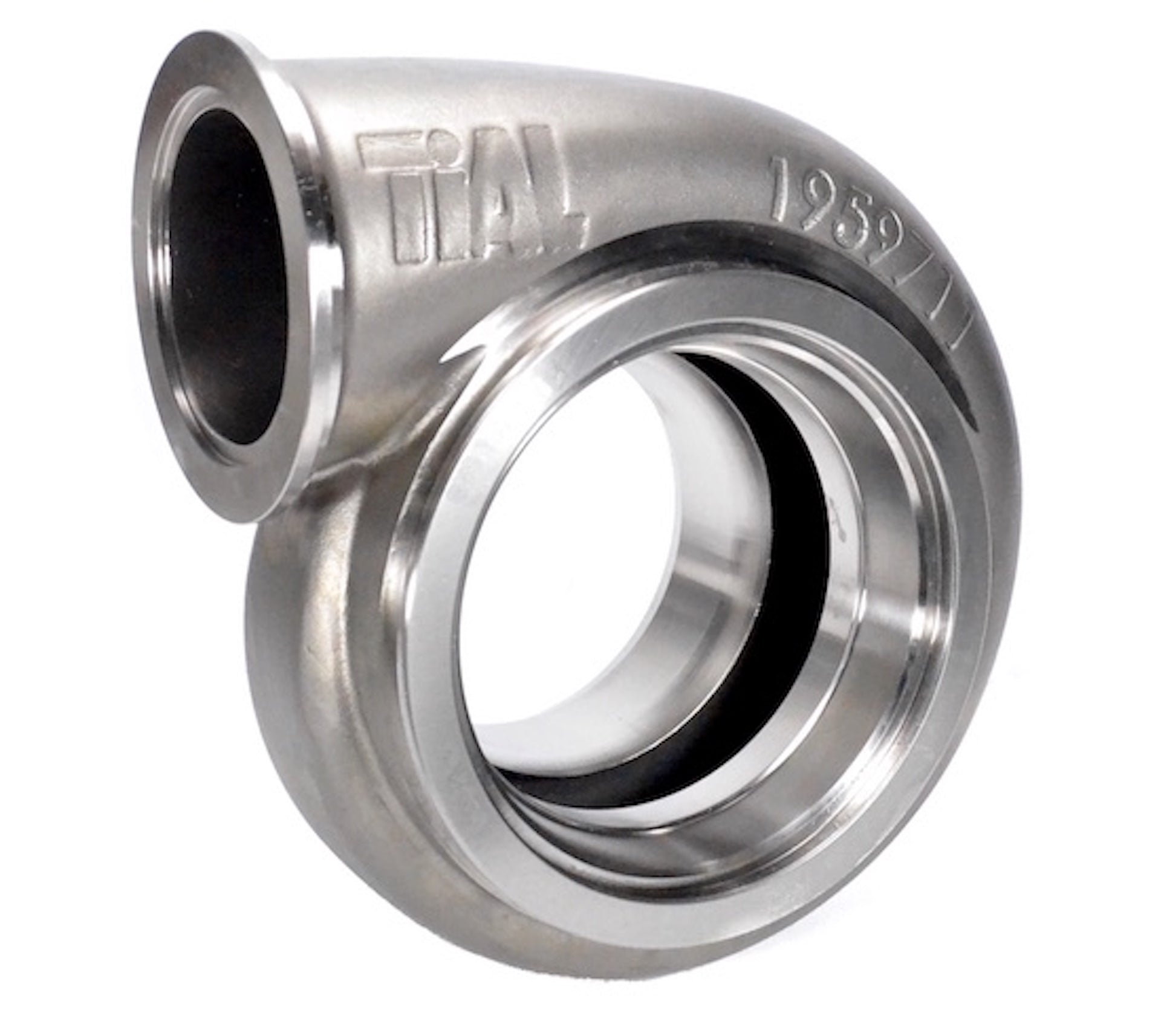

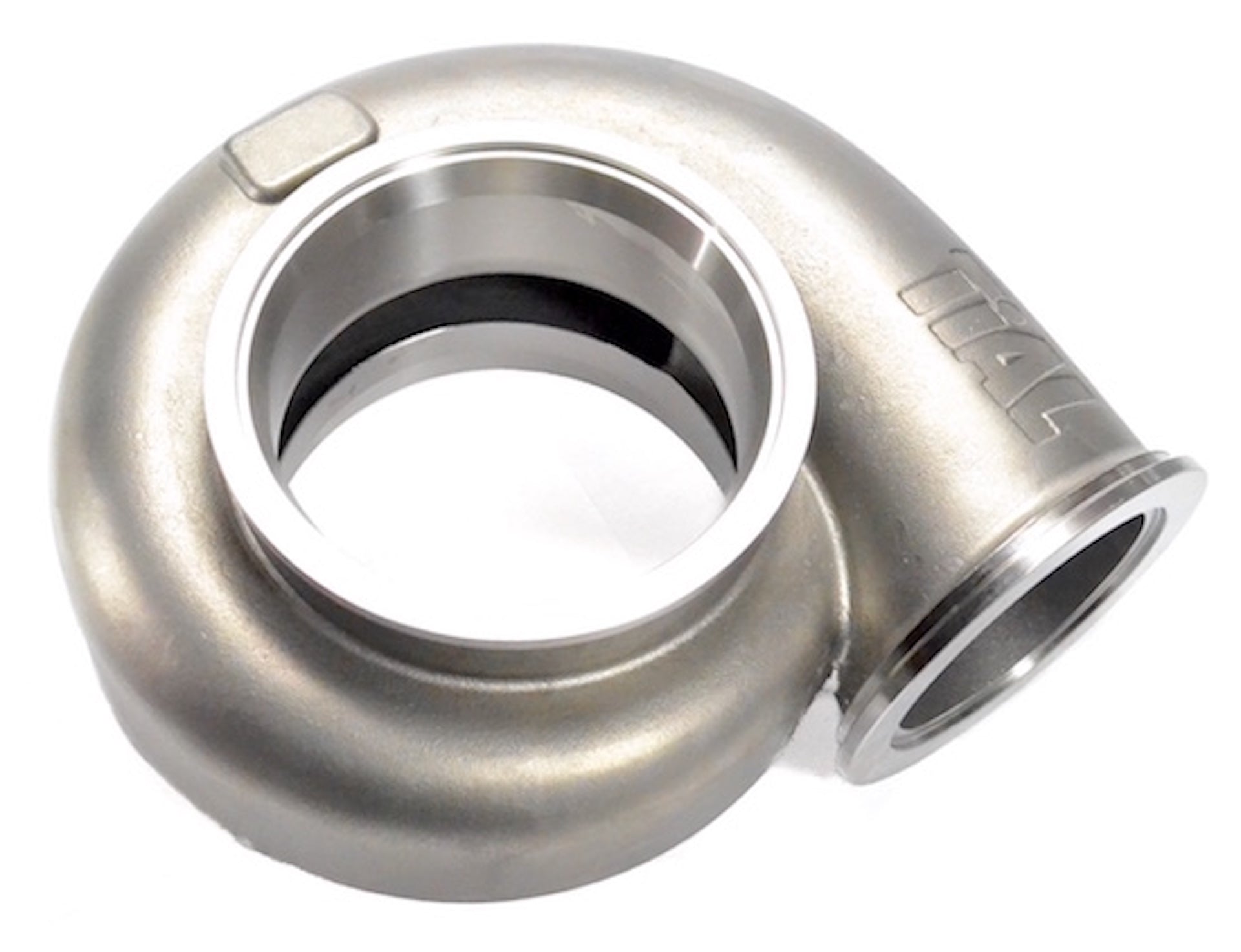

Turbine Housing, Tial, V-band inlet and outlet, GT45/GTX45, 1.02A/R

  • $649.00 USD
    Unit price per


  • Typically lighter weight than a corresponding iron housing of the same A/R
  • Investment cast stainless steel for a beautiful, smooth interior and exterior
  • Vband inlet and outlet gets rid of gaskets and bolts, no leaks and no broken bolts
  • Three A/R options
  • Overall physical size is smaller than standard housing, allowing it to fit in tight engine bays
  • Better heat retention than cast iron
  • Pivoting of the turbo 360* possible


GT45 Housing Option
Flange Materials 304L Stainless
Pipe Size Inlet Flange: 2.75" OD, Outlet Flange: 4.00" OD
Flanges/Clamps Included? No
Housing Weight 13.3lbs (largest A/R)
Turbine Wheel 87mm 85 Trim, 87mm 84 Trim 10 Blade
