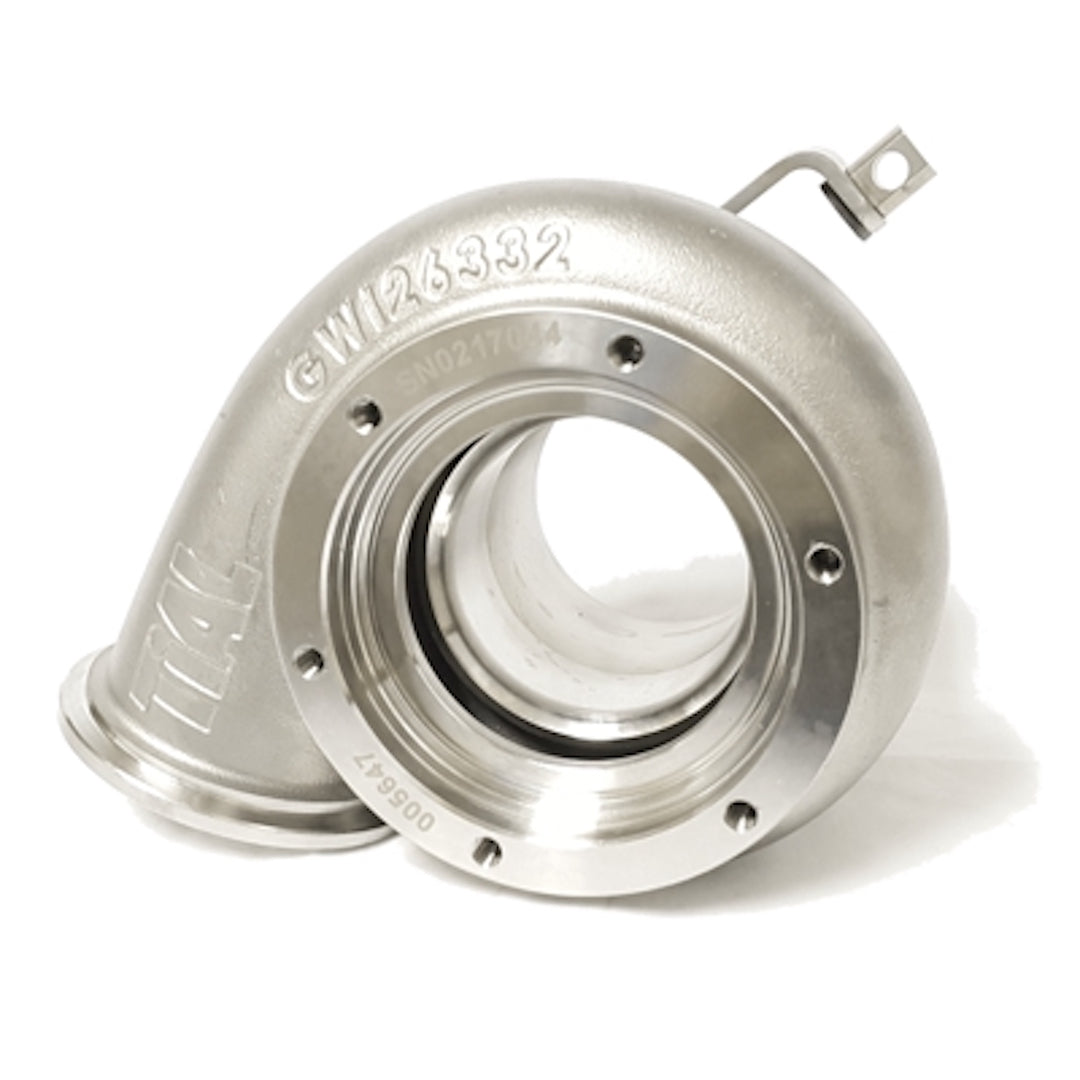

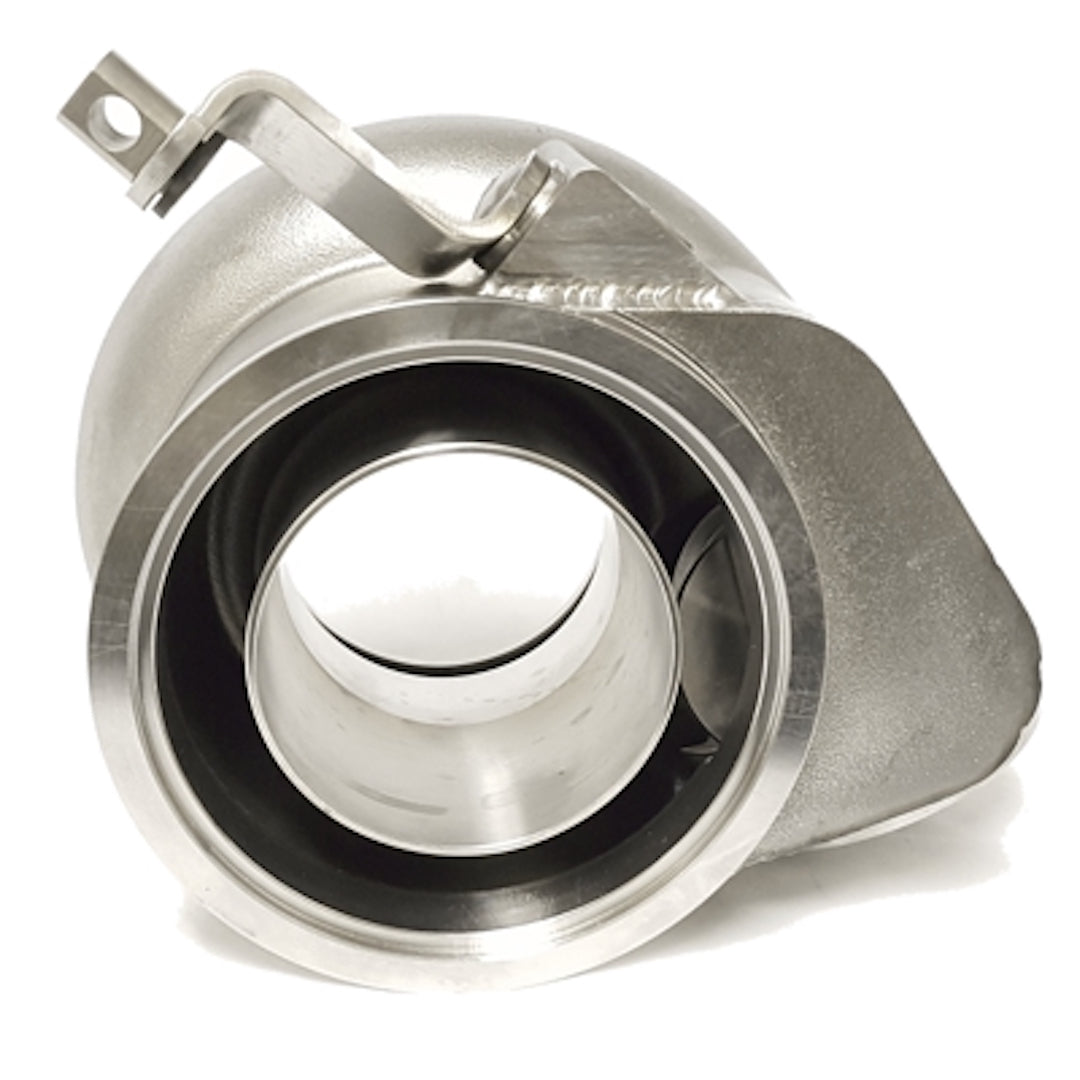

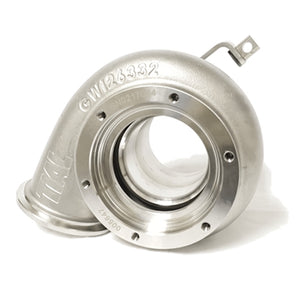

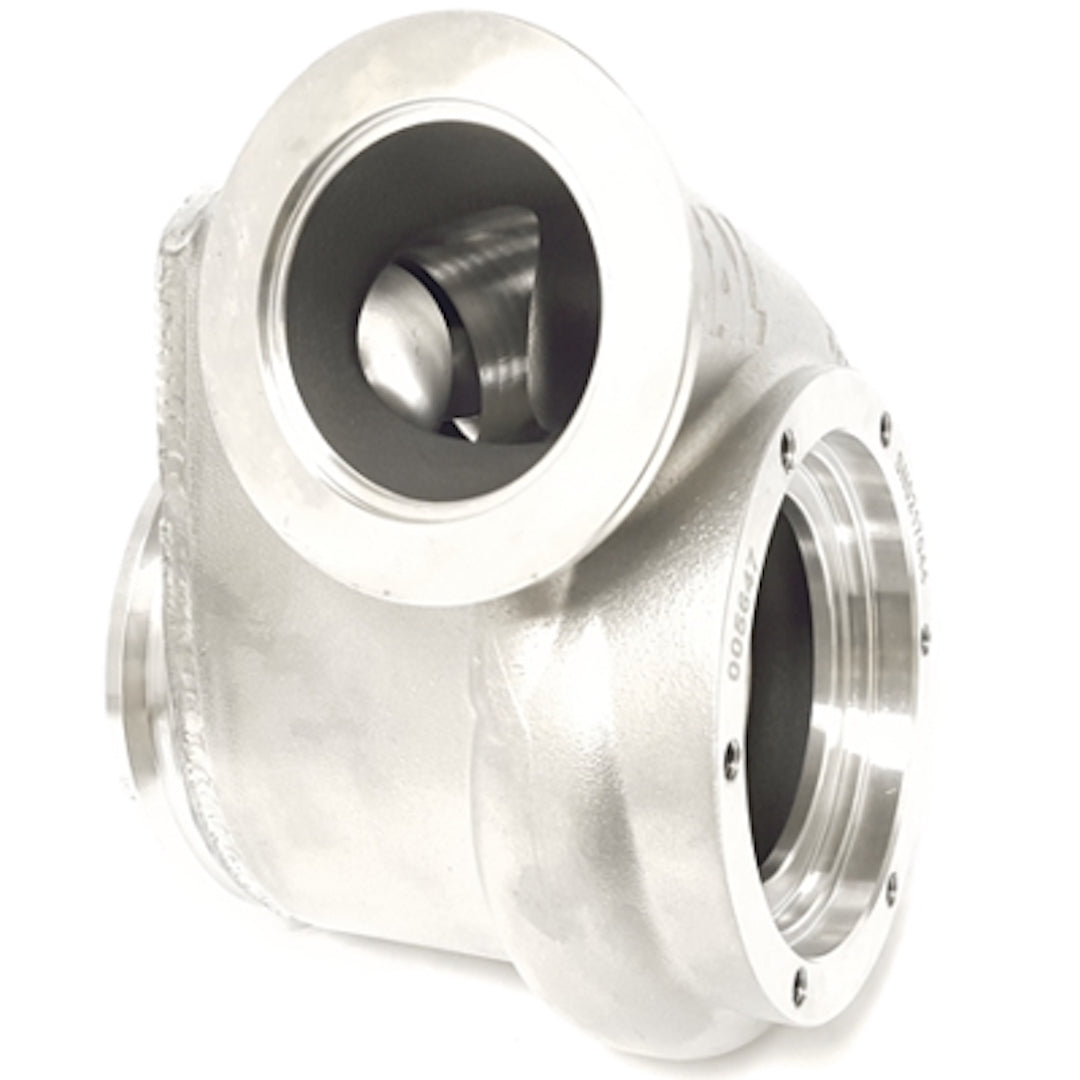

Int W/G Turbine Housing, TiAL P/N 005647, V-band inlet and outlet, GT30R/GTX30R, .62 A/R

  • $649.00 USD
    Unit price per


Product Description

GT30R/GTX30R internal wastegated TiAL turbine housing, .62 A/R with v-band inlet and outlet.

Specifications

  • 33% Turbocharger weight reduction vs iron housing
  • Investment cast stainless steel for a beautiful, smooth interior and exterior
  • V-band inlet and outlet gets rid of gaskets and bolts, no leaks and no broken bolts
  • Overall physical size is smaller than standard housing, allowing it to fit in tight engine bays
  • Better heat retention than cast iron
  • Pivoting of the turbo 360° possible

    Note: These housings will not work with the 700177-23 GT3071R CHRA, the heat shield is different, you must use the 700177-22 CHRA

Flange and Component Solutions:

  • V-Band Inlet Flange (manifold side): FLS093
  • V-Band Inlet Clamp (manifold side): CLA025
  • V-Band Outlet Flange (for Downpipe): FLS381
  • V-Band Outlet Clamp: CLC405
