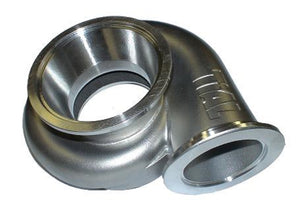

Tial Stainless Turbine Housing, V-band inlet and outlet, GT28/GTX28, .86 A/R

Tial Stainless Turbine Housing, V-band inlet and outlet, GT28/GTX28, .86 A/R

  • $365.00 USD
    Unit price per


  • Typically lighter weight than a corresponding iron housing of the same A/R
  • Investment cast stainless steel for a beautiful, smooth interior and exterior
  • Vband inlet and outlet gets rid of gaskets and bolts, no leaks and no broken bolts
  • Two A/R options
  • Overall physical size is smaller than standard housing, allowing it to fit in tight engine bays
  • Better heat retention than cast iron
  • Inconel bolts provided for vibration and stretching resistance in extreme applications
  • Locking tabs included for high vibration applications
  • Pivoting of the turbo 360* possible
Flange Materials 304L Stainless
Pipe Size Inlet Flange: 2.125" OD, Outlet Flange: 3.00" OD
Flanges/Clamps Included? No
Housing Weight 4.5lbs (largest A/R)
Turbine Wheel 53.9mm 76 Trim
    Housing, Tial, V-band , GT28/GTX28, .86 A/R
