GReddy Scion FR-S 2013- Engine Stroker Kit

Description

Car Make: Scion
Type: FR-S
Size: 2013-
Notes:

also fits Subaru BRZ / Toyota 86  for (ZN6) 4U-GSE / (ZC6) FA20

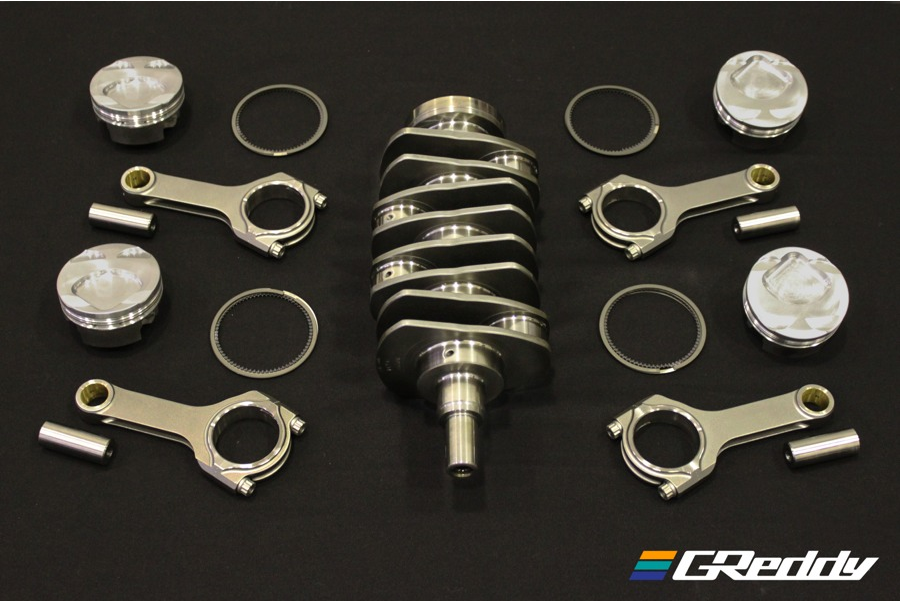

GReddy Superior Spec. 2.1L FA20 / 4U-GSE Engine Stroker Kit
Engine strengthening is crucial for safety and reliability of FR-S and BRZ over the 350hp mark. GReddy engineers have drawn from our FR-S race experience to assemble a complete stroker kit for the FA20/4U-GSE boxer engine, using only superior components. The kit features 9.5:1, 86mm bore. 2618 T6 forged aluminum pistons with specially designed shape ideal for high boost applications. This is connected to extra strong H-beam 433OM steel alloy forged connecting rods with a factory style 18deg. split line. And at the heart of the 2.1L kit is our dynamic balanced, E4340 Cr-Ni-Mo alloy billet steel stroker crankshaft.

 Forged Pistons (4)
    - 9.5:1 Compression
    - 86mm bore
    - 2618 T6 high tensile forged aluminum
    - ring widths 1.0 / 1.2 / 2.8mm
    - .866 x 2.250 free floating carbon steel wrist pins

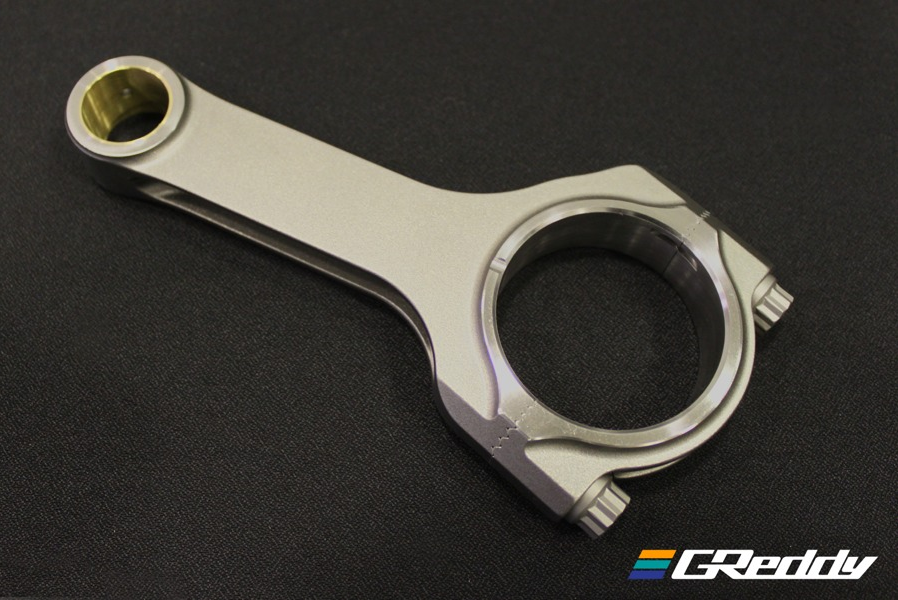

 Connecting Rods (4)
    - Strong H-Beam Design with factory style 18deg. split line
    - Forged 4330M steel Alloy
    - CNC machined, shot peened
    - Silicone bronze bushings for full floating pins
    - Top quality 3/8" bolts

 Stroker Crankshaft (1)
    - E4340 Aircraft quality Cr-Ni-Mo alloy billet steel
    - Triple heat-treated
    - Ion-plasma nitride journals
    - High speed straight line oiling system
    - Dynamic balanced
GReddy FR-S Product Page
Part #: 13511600

Warranty

  • Note: Products sold through this website that do not bear the Exoticspeed Brand name are serviced and supported exclusively by their manufacturers in accordance with terms and conditions packaged with the products. Exoticspeed Limited Warranty does not apply to products that are not Exoticspeed-branded, even if packaged or sold with Exoticspeed products. Please contact the manufacturer directly for technical support and customer service.
  • Warranty: One year
$6,500.00 USD
