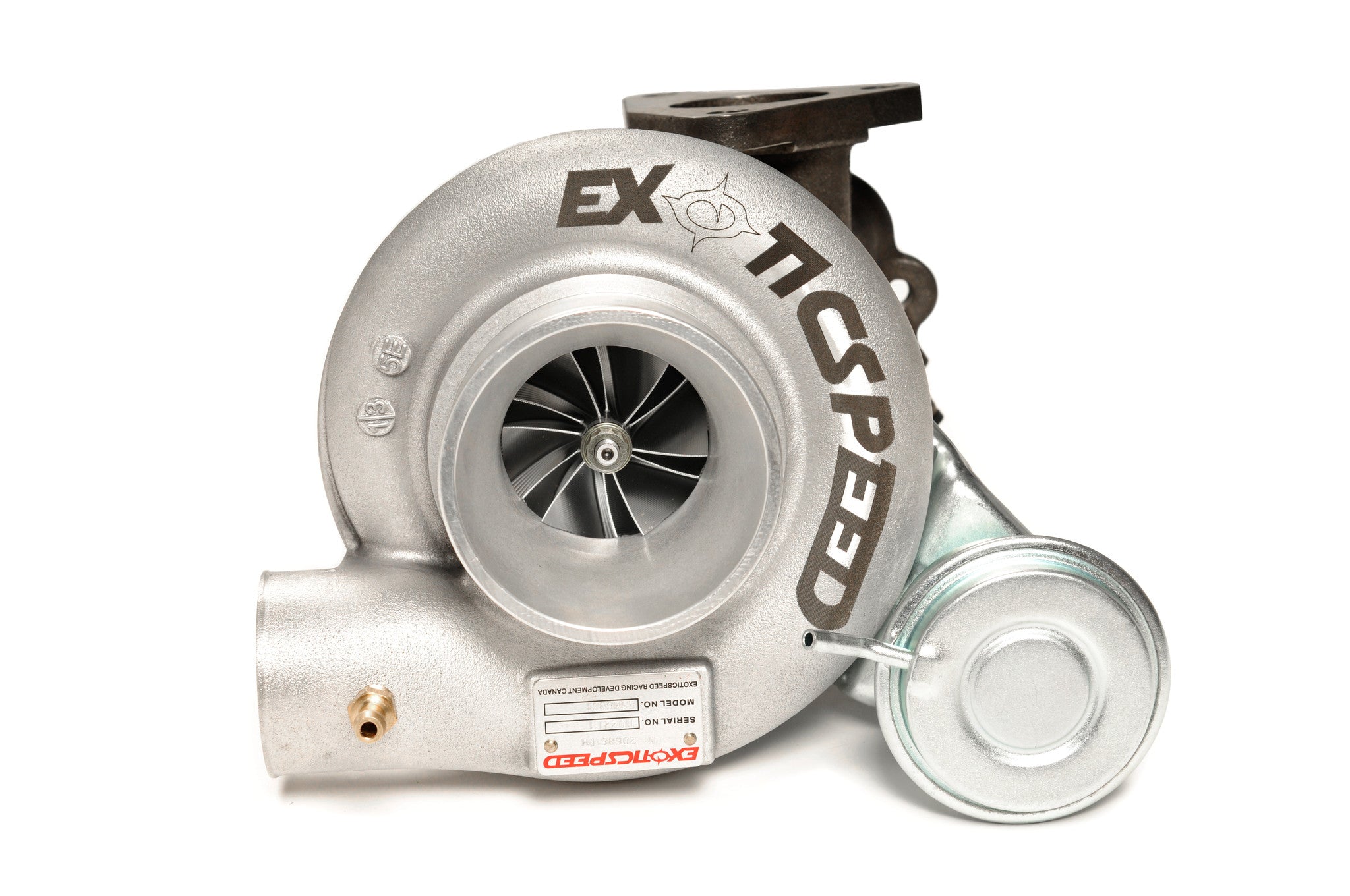

Exoticspeed ESM6856 Turbo Subaru WRX/STi

Description

Feature:

  • Bearing: Dual Ball Bearing
  • Cooling: Oil and Water cooled
  • Actuator rated: 0.9 bar
  • Wastetgate housing: internally
  • Power rated (HP): 300-420
  • Compatibilities: Subaru WRX/STi EJ20 to EJ25 1992-2014
  • Maximum RPM 170000
  • Maximum Gas temp: 900 degree Celsius
  • Maximum pressure: 2.6 Bar

COMPRESSOR

  • INDUCER (mm): 52.6
  • EXDUCER (mm): 68.0
  • SIZE: 20G
  • A/R: 0.57
  • Wheel: Billet machined
  • Housing Inlet: 3.0"
  • Housing outlet: 2.0"

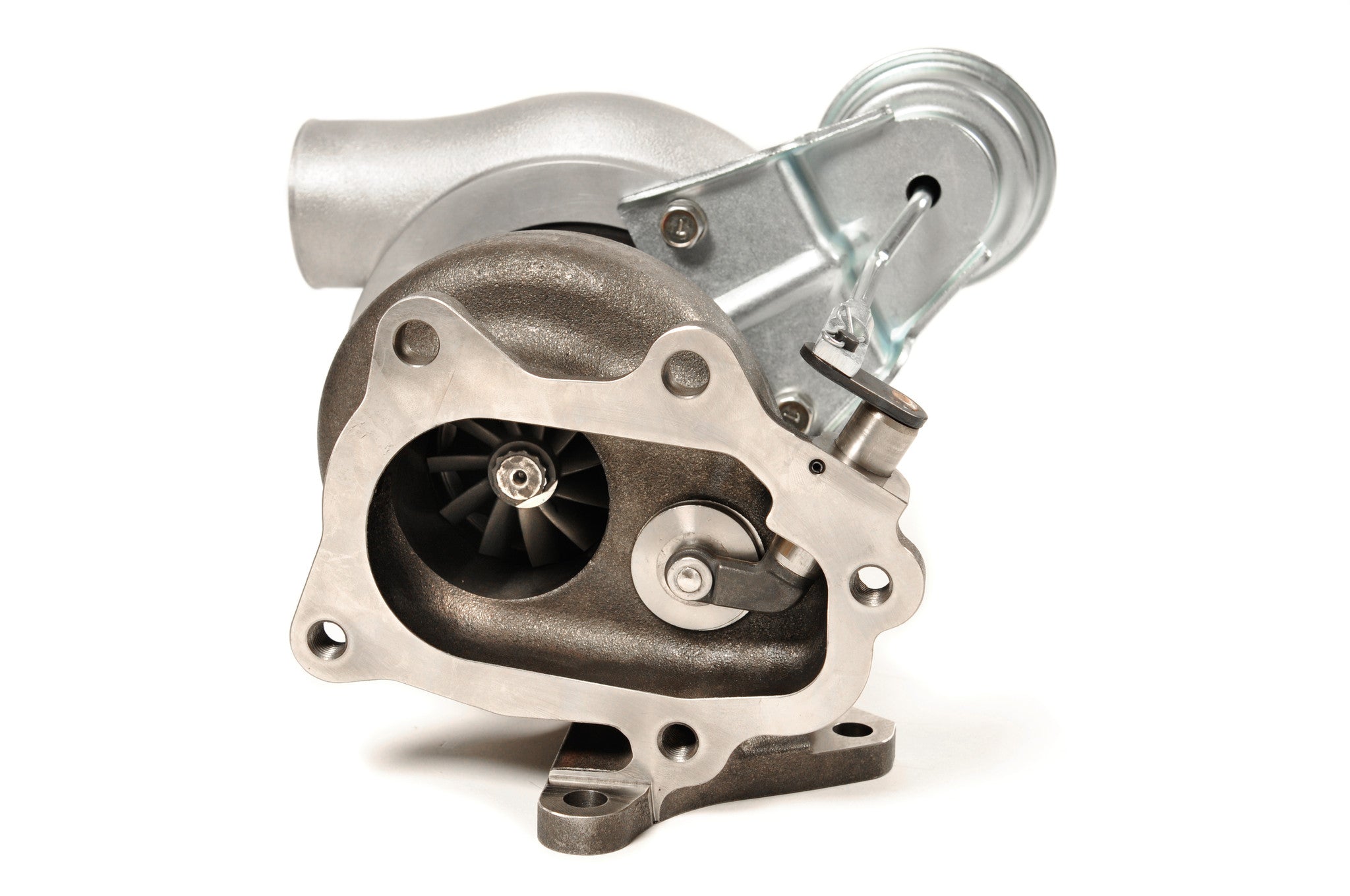

TURBINE

  • Inducer (mm): 56.00
  • Exducer (mm): 49.20
  • Wheel: TD05H
  • Inlet: Subaru 3 Bolt stock location
  • Discharge: Subaru 5 BOLT stock location
  • A/R: 8CM2
  • Wheel Material: Inconel

Warranty

  • Note: Products sold through this website that do not bear the Exoticspeed Brand name are serviced and supported exclusively by their manufacturers in accordance with terms and conditions packaged with the products. Exoticspeed Limited Warranty does not apply to products that are not Exoticspeed-branded, even if packaged or sold with Exoticspeed products. Please contact the manufacturer directly for technical support and customer service.
  • Warranty: One year
