HKS EVC6 Easy Writer
EVC-6 Easy Writer

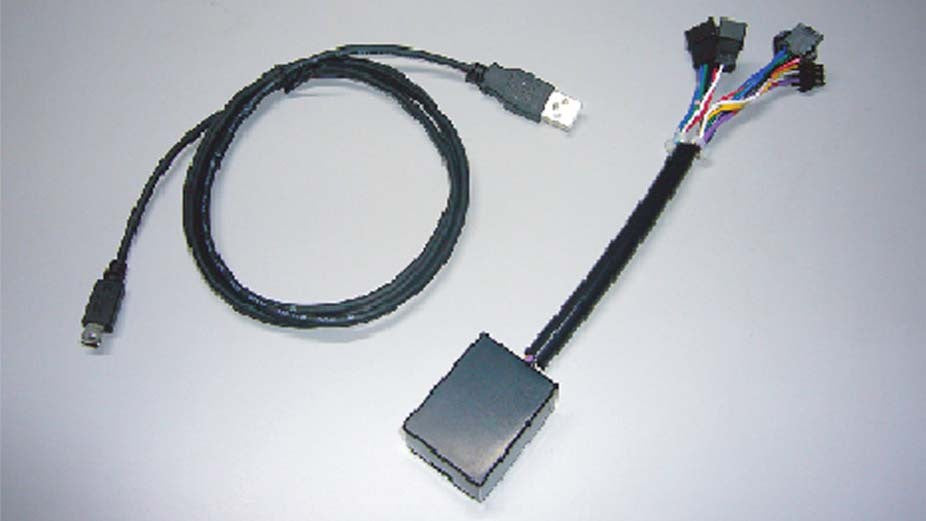

EasyWriter is the boost pressure setting tool which improves the operability of the EVC. New EVC6 is equipped with the TFT LCD; map

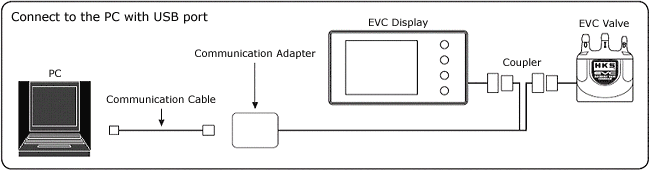

setting can be easily done on the screen on the unit because of the high level of visibility. Using this EasyWriter enable the EVC to connect with the PC,
and setting can be much easier.
Features

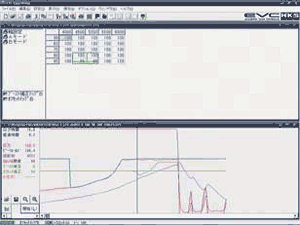

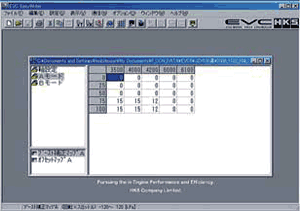

Settings can be edited, checked, and confirmed on the PC monitor.
EASYWRITERで設定可能な主な項目
Bar graph (Boost, Speed, PRM, or Throttle)
Bar graph peak function setting
Max Value of bar graph
Boost set valve
Map function setting
Map axis setting
Boost correction value
Offset value
Offset map setting value
After-image function setting
Backlight brightness
Sampling Time
Drop boost function setting
