HKS DMR version 2 multi recorder
[Direct Multi Recorder]
"Record," "View," and "Analyze" driving with HKS' drive recorder DMR. DMR is now one seg and DTT compatible.

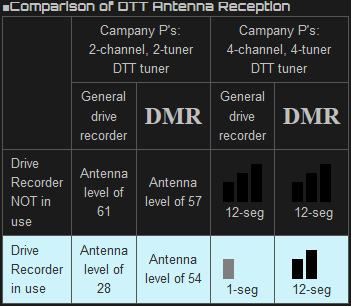

Some drive recorders generate radio wave, which causes the electromagnetic interference of digital terrestrial broadcasting, which results in poor or no signal reception.
HKS DMR minimizes radio emission with radio shielding on the main unit and other components!
HKS DMR can record driving and allow digital terrestrial broadcast viewing at the same time.
* Depending on signal reception/ radio wave conditions, digital terrestrial broadcasting may not be received properly.

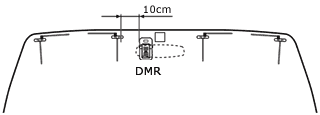

■Setting of the DMR
When placing the DMR unit 10cm away from the TV antenna, it was possible to watch digital terrestrial broadcasting on TV and 1-Seg digital TV.
* DMR also functions as a drive recorder that can keep visual records of incidents and accidents accurately.
セカンドカメラ
Shoot the Performance!
a 1.3 mega pixel CMOS digital sensor unit
142.5° wide-angle camera + supersensitive 2nd camera
Record the Performance!
Image and sound are recorded simultaneously.
Location & speed recorded using GPS, viewed on Google Map.
Vehicle's XYZ direction can be recorded using G sensor.
Permanent power supply allows continuous recording.
View the Performance!
Data can be analyzed on PC using the DMR viewer software.
16 frame multi capture for continuous recording.
MAIN FEATURES
Main unit contains a camera, of course, GPS and G sensors to enable recording of video, audio, position time and impact with improved recording performance. "DMR" is the recorder to enjoy recording
SIMPLE INSTALLATION
Position the DMR unit at the top of the windscreen, and just spark plug into the Cigar Lighter Socket.
GPS UNIT & G-SENSOR EQUIPPED
Location and interval speed can be viewed on Google maps using the GPS location information.
G sensor can detect and record the speed (G) so the DMR can show the XYZ amplitude. Also, there is a permanent power supply unit include which prevents the battery from discharging too much.
SECOND CAMERA as STANDARD EQUIPMENT
HKS' DMR is equipped with the 2nd camera as a standard. The camera can point towards the driver's foot or meters to record the driver during circuit. Using the special viewer software, it is possible to analyze your driving more precisely.
DMR's "HIPER ENGINE" ON CPU
Most recent high speed CPU (Hiper DMR Engine) allows seamless recording straight to SD memory card without delay even though most drive recorders will have short gaps ever few minutes in recording when it saves the recording to SD memory card.
DMR uses the latest systems to directly record to the SD memory card meaning that those precious moments aren’t lost. It also does not retain any data on the main unit. This is a unique feature for the HKS' DMR.

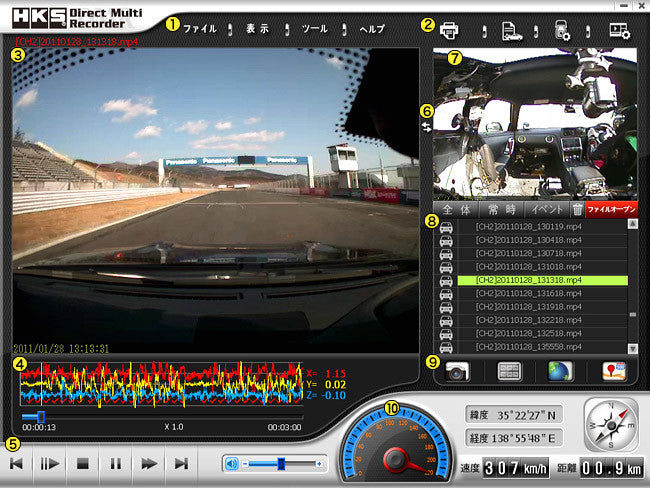

１ Menu: Menu of "File", "View", "Tool", and "Help."
2 Shortcut Icons: Shortcut of printing, event report, DMR settings, and viewer software setup.
3 Main Screen: Screen to show the Image recorded.
4 G Sensor Graph: Graph shows the variation of G sensor.
(Red: Front & back side, Yellow: Lateral side, Blue: Up & down side)
5 VCR Control: Adjust image conditions, volume, and replay speed.
6 Screen Swtich Button: Switch the screen between the main screen and sub screen.
7 Sub-Screen: Image from the camera, Google Maps, or Google Earth are shown.
8 File List: List of images recorded.
9 Shortcut Icons: Icons for capture, 16 frame multi capture, Google Earth, and Google Maps.
10 GPS Data - Speed Infomation: GPS data, speed, and distance are shown.

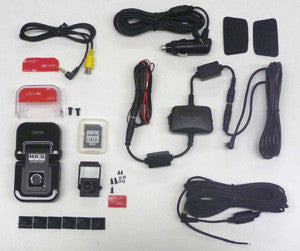

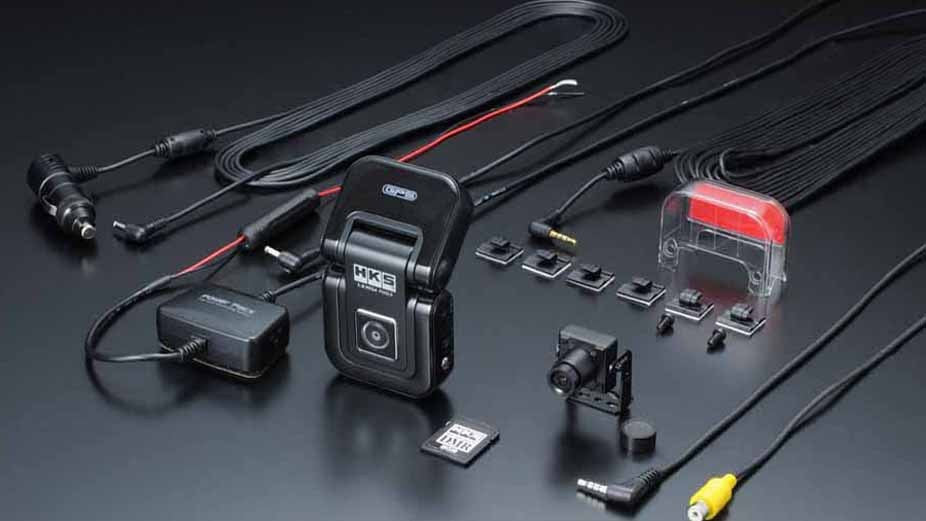

PACKAGE CONTENTS
DMR Main Unit
Cigar Lighter Socket Power Cable (4m)
Hard Wire Power Unit (3m)
SD Memory Card (8GB)
Video output cable (90cm)
Guide Sticker
Fitting Bracket
2nd Camera
2nd Camera Power & AV cable
2nd Camera Holder
Fitting accessories (screws clips tape)
Viewing software (Windows XP, Vista, 7 Compatible)
