HKS GT SPECIAL FULL TURBINE KIT - Mitsubishi LANCER EVOLUTION 2007-09
"GT FULL TURBINE KIT" that HKS CZ200S (CZ4A) recorded 59"495 (radial street tire) at Tsukuba Circuit with it.
New GT3240 turbine with A/R0.73.
- Boost and power drop at high rpm with stock turbine will be solved.
The turbine is mounted on stock exhaust manifold with heat proof steel adaptor.
- Because of its rear side exhaust manifold layout, which heat tends to remain there, stainless steel exhaust manifold was not selected for this application. With heat proof steel adaptor, it enables durable and reliable mounting.
Front Pipe and Bypass Pipe are designed to be used with stock catalytic converter.
- The kit can be used with other HKS products (Piping Kit, Intercooler Kit, Racing Suction Kit etc.)
- GTII Wastegate is the exhaust gas bypass valve.

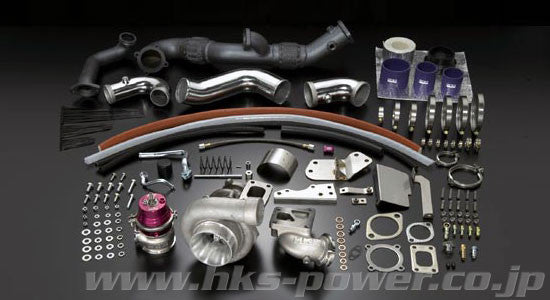

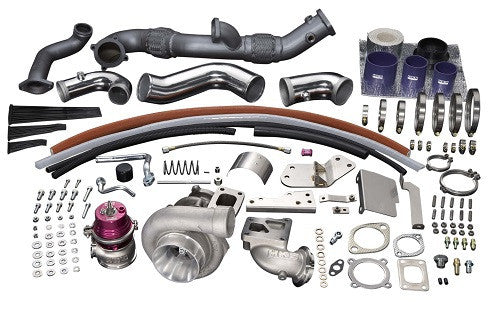

|Parts for the kit|
GT3240 turbine (54T A/R0.73)
GT II WASTEGATE
Turbine adapter (cast)
Chamber pipe (polished aluminum)
Suction pipe (polished aluminum)
Water, oil pipe
|Camshaft||HKS V-CAM Pro (IN 256°/EX248°)|
|Piston||HKS Forged Piston Kit φ86.5|
|Connecting Rod||HKS H-beam prototype|
|Cylinder Head gasket||HKS Metal t=1.2mm|
|Injector||HKS 1000cc X 4|
|Fuel delivery pipe||HKS Fuel Delivery Kit|
|Fuel regulator||HKS Fuel Regulator|
Remarks for installation
- Modification (shaving) of transfer is required during installation.
- Average installation time : 8 – 10 hours.
- Upgrading of spark plug is required (Spark Plug Super Fire Racing M45XL is recommended.)
- Use Turbo Oil (15W-50 etc.)
- Need Racing Suction Reloaded/HKS intercooler kit/ Piping kit for installation.
