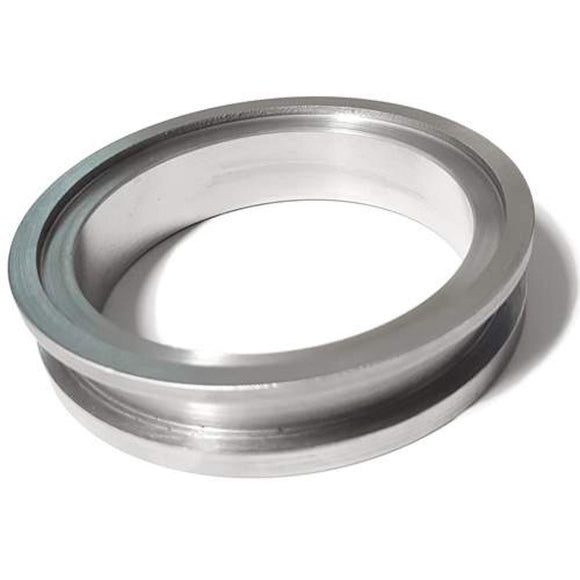

Flange, Steel Weld, 3" V-band, T4 Turbine Hsg, Convert discharge to 81mm centering V-band
3" steel weld v-band flange. Weld directly to T04 (T4) turbine housing with cast in groove to convert complete turbine discharge with a protruded lip and 81mm diameter centering ring v-band. Use mating flange PN: FLS-246 on the downpipe side and clamp PN: CLA-013 to join.
On the housing side where it's welded to the housing, the ID is 69mm and the OD is 90mm.
On the other side of the flange where it mates to the downpipe, the ID is 70mm and the OD is 90mm.
